| Model #: MT8212E |
|

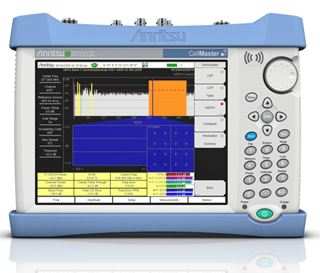

| Anritsu Cell Master Compact Base Station Analyzer |
 |
| |
100 KHz to 4 GHz Spectrum Analyzer, 2 MHz to 4.0 GHz Cable & Antenna Analyzer
The MT8212E Cell Master™ Base Station Analyzer is the smallest, lightest, and most economical solution for 2/3G and WiMAX base station testing. It’s ideal for installation and commissioning as well as for maintenance and troubleshooting. This optimal combination of base station test capabilities in one handheld device eliminates the need for several independent test instruments, thereby reducing the number of tools the user must carry and learn to operate. Whether it’s sweeping cables, making power measurements, finding interference, troubleshooting base station signal quality, or verifying backhaul performance, the Cell Master MT8212E is the ideal all-in-one instrument to help keep your network up and running.
- 30 Analyzers in one
- 3GPP, 3GPP2, WiMAX, signal analyzers
- Easy-to-use Touch screen
- USB connectivity
- Most compact handheld
|
Cable and Antenna Analyzer Highlights
- Measurements: RL, VSWR, Cable Loss, DTF, Phase
- 2-port Transmission Measurement: High/Low Power
- Sweep Speed: 1 msec/data point, typical
- Display : Single or Dual Measurement Touchscreen
- Calibration: OSL, InstaCal™™, and FlexCal™
- Bias Tee: 32 V internal
Spectrum and Interference Analyzer Highlights
- Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I
- Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID
- Dynamic Range: > 95 dB in 10 Hz RBW
- DANL: -152 dBm in 10 Hz RBW
- Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
- Frequency Accuracy: < ±50 ppb with GPS On
|
|
|
|
|
|
